Olympic Shooting Venue — Magma Architecture

2012-07-31 14:48:47|  分类: 建筑 |  标签: |举报 |字号 订阅

  下载LOFTER 我的照片书  |

'olympic shooting venue' by magma architecture, london, england
image by hufton+crow
all images courtesy of magma architecture


located in the woolwich district of london, magma architecture's 'olympic shooting venue' will host this summer's marksmen events
for the 10, 25, and 50 meter ranges. comprised of two partially-closed structure and one fully-enclosed center, the temporary constructions
are fully mobile, easily dismantled and reassembled when needed leaving no permanent damage to the footprint.

modular steel trusses and members frame simple cubed volumes with 18,000 square meters of pvc double-layer membrane stretched over
the buildings. the colorful circular protrusions act as tension nodes to support the membrane spanning an otherwise expansive
surface area. they also create entry and exit points for natural ventilation, maintain interior comfort temperatures and create entryways
on the ground floor. the semi-translucent nature of the tents reduces the need for interior lighting, making the projects almost fully
self sufficient.


shooting venues


street view


entry
image by hufton+crow


circular nodes provide ventilation and circulation


facade


circular node detail


shooting venues


entrance node


interior

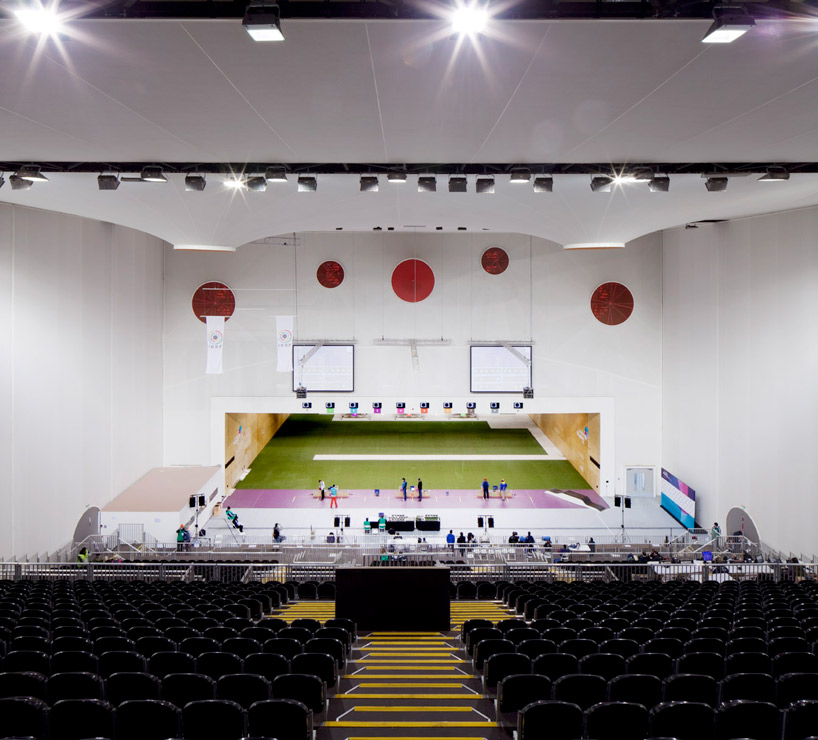

interior with stands


interior of nodes


interior of node


interior space frame structure


shooting venue


exterior shooting venues


section perspective


ventilation diagram

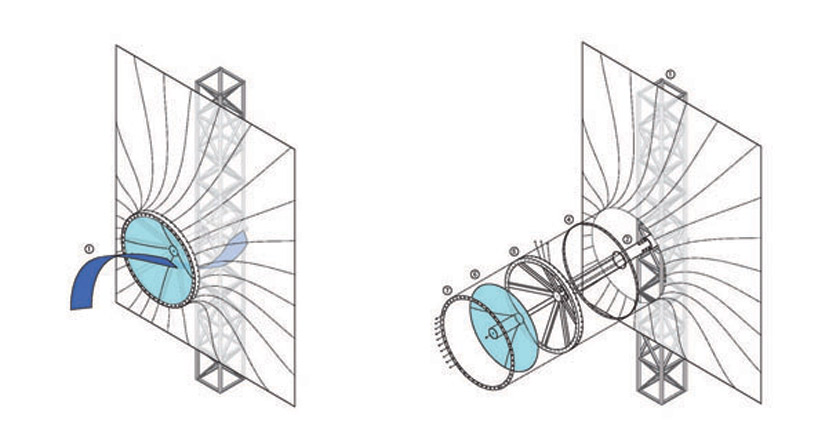

exploded axonometric of nodes

This article reproduced from designboom.
Abstract Website:http://www.designboom.com/
